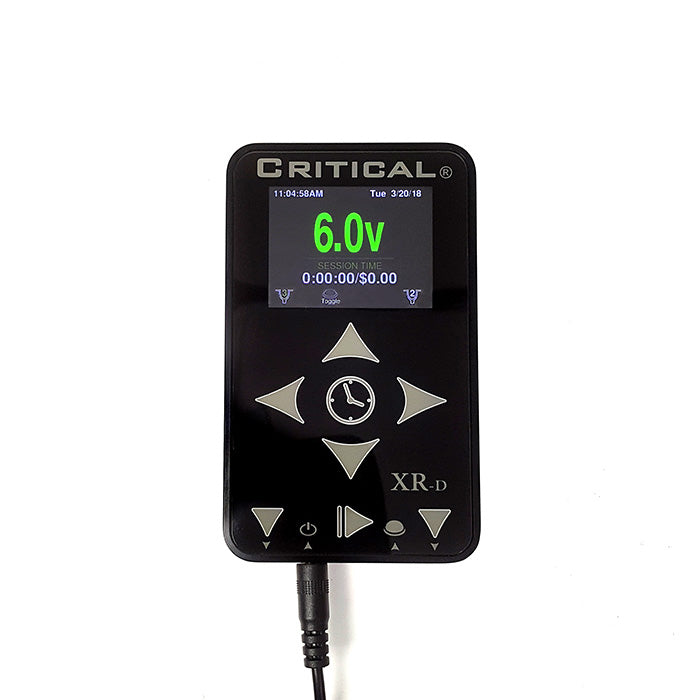

Critical XR-D Digital Power Supply

• New-Full color TFT display with user selectable color themes and large easy to read fonts.
• New-Billet aluminum CNC machined housing
• New-Carefully tuned Capacitive touch user interface
• New for the XR-d is a built in oscilloscope for a visual approach to coil machine tuning
• New- mount design for more mounting flexibility.
• New- Jump start feature and maintained pedal modes now independently assignable to preset/output buttons

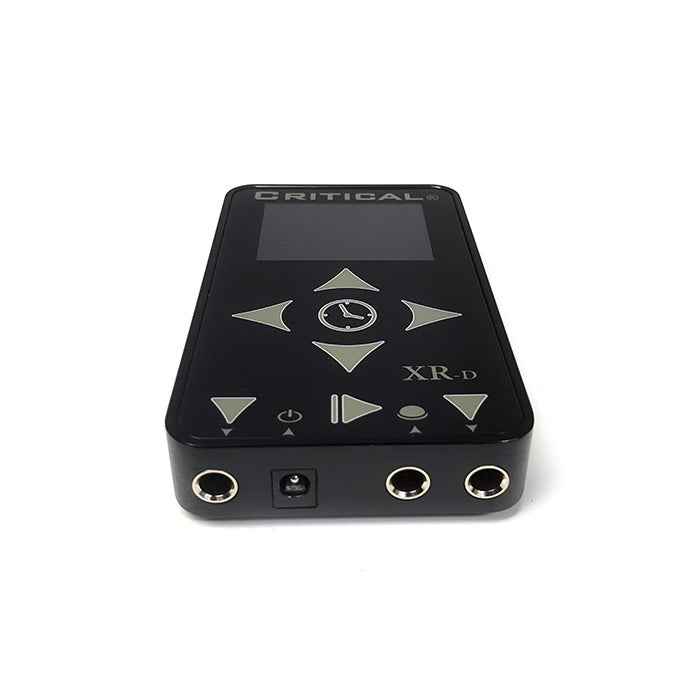

• New- Genuine high quality Amphenol 1/4” jacks for better power delivery and long life.
• Dual Outputs on the XR-d model
• 4 amp peak current, 2 amp continuous
• Session meter based on user set hourly rate: session mode, run time mode, or hybrid mode (new “Hybrid” billing mode automates user input)
• Pedal override button: No need for a foot pedal
• Precision regulated set point voltage 0-18vdc
• Built in short circuit protection
• .1 volt adjustment resolution
• Time of day
• Voltage presets with 2, 4, or 6 machine memory modes
• Non-volatile memory
• Universal input 90-240vac 50/60hz
• Accepts standard 1/4″ clip cord and foot pedal connections
• Volts, Amps, Speed (hz), Duty Cycle (%), and STL
• Easily bagged with typical machine or bottle baggies
• Additional mounting options available in store
• 2 year full manufacturer warranty
• Included: XR-D power supply, Magnet mount, US power cord and switching power adapter
• Made in the USA

WARRANTY & SERVICES FOR THIS PRODUCT ARE PROVIDED DIRECTLY BY THE MANUFACTURER
